01

GEMINA · Musical Geometry

GEMINA translates the mathematics of the 12 pitch classes (ℤ₁₂) into three dimensions while preserving the true symmetry of the keyboard (D–A♭ vertical axis and F–B horizontal axis). Notes divide into the two interlaced whole-tone hexagons (cyan α and magenta β) on a single invariant ring — where every chord always draws the exact same geometric shape, and rotating one whole-tone scale 180° clockwise continuously transforms the ring into the Circle of Fifths.

Invariant ℤ₁₂ ring & Circle of Fifths rotation · 10,800+ MIDI archive · Live Negative Harmony

GEMINA system projects

Free Web App · 10,800+ Works & Radio GEMINA3D: notes of a chord drawn as glowing cyan and magenta polygons in 3D harmonic space

GEMINA3D

WebGL 3D · 10,800+ Classical Piano Works · Continuous Radio · Live Negative Harmony · WebMIDI

  • 10,800+ Works Archive
  • Continuous Radio ★
  • Invariant 3D Ring
  • Original · Mirror · Negative
  • Drone Flight & Fixed Clock
  • WebMIDI & VR

Experience music from within: browse 10,800+ classical piano works across 2,780+ composers, tune into Continuous Radio (Great Masters, full archive or single-composer radio), drop your own MIDI files or play live via WebMIDI. Fly through the tunnel with the 3D drone or lock the frontal Fixed Clock, flip any piece in real time between Original, Mirror (D–A♭) and Negative Harmony (C–G), and enter in VR.

iPad · Coming Soon AXIS GEMINA on iPad: circular stage with hexagonal note axes and mode ring

AXIS GEMINA

iPadOS Multitouch Instrument · App Store (Upcoming)

  • iPadOS
  • Multitouch Stage
  • Mode Dial
  • MIDI In / Out

A multitouch musical instrument for iPad built on the geometric axes of GEMINA. Play directly on the circular stage or connect a MIDI keyboard, and turn the outer ring to transform keys, modes and geometric sequences on the fly.


02

Physical Modelling of Instruments & Effects

Under the Boquera Instruments banner I develop component-accurate physical emulations of electromechanical instruments, tube amplifiers and analog studio circuits — starting at the 1,200 RPM synchronous motor and calibrated side-by-side against vintage hardware at Amigó 42 Studios in Barcelona.

PRES Engine · Zero samples · 0 ms added latency · macOS, iPad/iPhone (AUv3), Windows & Linux

Boquera Instruments plugins

v2.0 · Free (Desktop) · iPad & iPhone (AUv3) SYNCHRONUS 91 v2.0 interface: two-manual tonewheel console with drawbars, walnut cabinet and 3D Open-Lid view

SYNCHRONUS 91

macOS · iPadOS / iOS (AUv3) · Windows · Linux · AU · VST3 · Standalone · 0 ms Latency

  • PRES 1,200 RPM Motor + 91 Wheels
  • Open-Lid 3D (8 Live Views)
  • 9 Paliney #7 Contacts + Long-Lever
  • Pedals to Lower · Jazz Tap
  • Organ Vault + Luthier .s91cal
  • Touch MIDI Learn & User Presets

The organ that starts at the motor. SYNCHRONUS 91 v2.0 rebuilds a 1,200 RPM synchronous motor, 12 gear ratios, 91 free-running tonewheels on spring-coupled shafts, multidimensional 9-busbar Paliney #7 key contacts (Pressed vs. Struck gesture, Glissando Assist & Long-Lever Action), 18-section LC Scanner Vibrato, tube preamp, 3-spring reverb and dual-rotor cabinet with zero samples and 0 ms latency. Lift the lid in 8 live 3D views (1,200 RPM spun-metal blur & Luthier strobe), play walking bass with Pedals to Lower + Jazz Tap, explore the Historical Organ Vault, and map any hardware controller with Touch MIDI Learn.

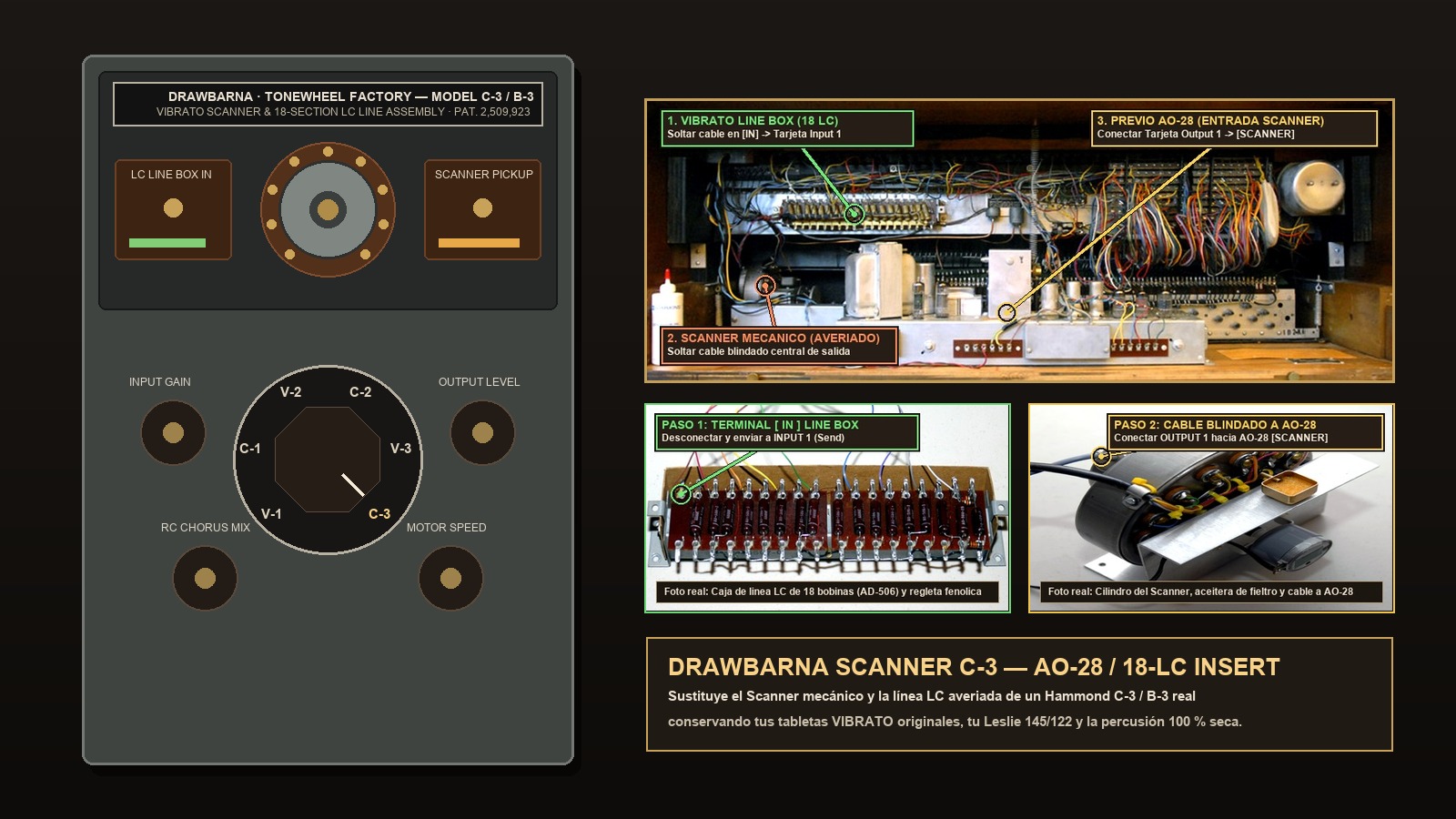

Plugin + AO-28 Hardware Insert Scanner C-3 interface and internal wiring photos

SCANNER C-3

macOS · AU · VST3 · Standalone · U.S. Pat. 2,509,923

  • 18-Section LC Line
  • 16-Plate Scanner
  • AO-28 Hardware Insert
  • AU · VST3 · Standalone

Physical emulation of the 18-section LC delay line (500 mH AD-506 coils & 4 nF capacitors), 16-plate capacitive scanner (412.5 RPM) and RC Chorus network. Run it in any DAW or as a 2-cable hardware insert on a real vintage console preamp — keeping your original Vibrato tablets, external rotary cabinet and 100% dry harmonic percussion.

Upcoming standalone circuit & FX plugins

Each analog stage inside SYNCHRONUS 91 is also being released as an independent AU / VST3 / Standalone effect plugin for any keyboard, guitar or mix bus:

MOD 01 6AU6 · 12AX7 · 12BH7A + Swell

AO-28 Tube Preamp

Variable-mu pentode drive, triode stages and electro-optical loudness swell curve.

MOD 02 6550 Tube Amp · Horn & Drum Doppler

Rotary 122 / 147 / Philly 22H

800 Hz crossover, dual-rotor acoustic Doppler field and tube power-stage saturation.

MOD 03 3-Spring Tank · Pre-Rotary Topology

RV-1D Type-4 Spring Reverb

Dispersive triple-spring tank positioned either post-preamp (pre-rotary) or studio post-mics.

Ideas, feedback or a collaboration in mind? Get in touch. Contact →
